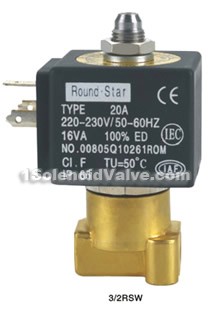

3/2RSW Series Two Position Three Way Solenoid Valve
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）
product drawing
3/2RSW Series Two Position Three Way Solenoid Valves
Dimensions & constructral diagram
3/2RSW series two position three way solenoid valve constructral diagram(pic1)
3/2RSW series two position three way solenoid valve constructral diagram(pic2)
Technical parameters
| type | 3/2RSW010 | 3/2RSW012 | 3/2RSW015 | 3/2RSW020 | 3/2RSW025 | 3/2RSW030 | |
| thread G | 1/8" | ||||||
| diameter | mm | 1.0 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 |
| Cv value | 0.03 | 0.05 | 0.11 | 0.15 | 0.20 | 0.25 | |
| working pressure(pressure differential)（AC） | kgf/cm2 | 0~10 | 0~10 | 0~8 | 0~8 | 0~5 | 0~4 |
| medium temperature℃ | -5～80℃ (-10～130℃) | ||||||
| rated voltage | 220V~AC/50HZ 110V~AC/50HZ DC24, floating up and down:-15%~+10%; others can be customized | ||||||
| 3/2RSW series two position three way solenoid valve，G1/8〞 applicable medium： water, air,oil medium temperature：-5~80℃ acting mode： direct-acting working type： normally closed type |
body material： brass(forged) sealing parts materials： NBR coil protection coefficent： plastic sealing coil IP65 |
| remarks： when medium temperature is higher, we select fluoro rubber diaphragm VITON, its media can reach a maximum temperature of 130 ℃, adding V after type, such as the 3/2RSW010-V |
|
